Hologram Solution

Hologram Machinery









Hot Melt Adhensive Coating Machine and hologram sticker lamination machine


To coat hot melt glue onto hologram hot stamping foil and dry the hologram hot stamping foil in roll. This machine also can laminate hologram sticker onto line with water base adhesive and solvent base glue.

hologram hot stamping coating machine

Hologram coating machine for hologram hot stamping foil and holographic sticker as well. This machine has automatic side guide for unwind and rewind. The drying hot air cycles in the heating container by fan and heater. Unwind and rewind tension control helps hologram foil to be coated and laminated smoothly for die-cutting and slitting.

hologram lamination machine

Specifications:

1. Working speed: 1-55 m/min
2. Maximum coating width:200mm
3. Power: 380v 20KW
4. L*W*H:2700mm*800mm*1900mm
5. Weight:900kg

holographic sticker ashensive coating

Hologram foil is coated with white color water base glue. This glue is for holographic sticker.

coating machine

The coating and lamination machine has controller panel to make the machine works easily.

coating and laminating machine

The glue/adhesive used for this machine can be water base or solvent base. It can be hot melt glue for hot stamping foil and Ethyl acrylate glue for hologram label.

coating and laminating machine

The glue/adhesive used for this machine can be water base or solvent base. It can be hot melt glue for hot stamping foil and Ethyl acrylate glue for hologram label. To coating hot melt glue will have different cylinder than glue coating for hologram sticker.

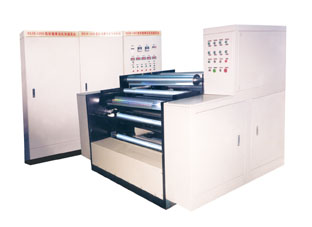

1200 mm Wide Web Soft Hologram Embosser

This machine is suitable to emboss many kinds of film, such as transparent BOPP, PVC, PET film, extensively used in manufacturing hologram film for anti-counterfeit hologram packing material. Laminating together with hologram film, lots boxes have fake preventing packaging and improving their appearance with shining and vivid hologram effect. To metallize these transarent BOPP, PVC, PET film, we can get aluminum metallized hologram film in different color, such as silver, red, blue, green, yellow,ect.


Performance and Characteristics:
1. It only requires 20 minutes of heating to achieve work requirement, automatically coordinating with cooling system and realizing heat energy balance. Furthermore, It not only can save energyby two-third, but also work constantly and stably.
2. Jointing seam will not expand with hot.

1.Width of Roll:1320mm
2.Width of Press Film:1250mm
3.Max. Diameter of winding and rewinding:580mm
4.Coling system: Oil and water cool system
5.Speed of embossing:0M-50M/Min.
6.Meter Counter: Automatic meter counter
7.Thickness of Material(Film, BOPP, PET, PVC):0.012-0.200mm
8.Temperature controlling:temp.0--200C
9.Compressed air needs: 6 ATM
10.Frequency-change speed-change Motor:2.2KW
11.Auto temperature perseverance system:12.5KW
12. Power.: 220V 50HZ
13.Total Power consumption:16 KW
14.Weight of Main Machine:1.5T
15.Embosser dimension of Main Machine: W1800*L1200*H1500mm



Affordable Hologram Machinery   Hologram Sticker Production Photoes    Hologram Hot Stamping Machinery and Project

List of Hologram Making Machines  download Video of hologram project sample
#1. Type A 2D/3D holographic master Shooting System  download Video of 2D/3D master shooting 1 2 3 4
#2. Type B 2D/3D holographic master Shooting System
#3. Dot-matrix holographic master Shoooting System  download Video of Dot-matrix master shooting 1 2 3
#4. holographic master Recombination Machine download Video of Recombination 1 2
#5. Electronic Forming Machine
#6. New Mode Simple Hard Hologram Embosser download Video of hologram hard embossing machine
#7. Old Mode Hard Hologram Embosser
#8. Wide Web Soft Hologram Embosser  download Video of soft hologram embossing machine 1 2
#9. Hologram Sticker Lamination Machine
#10. Hot Melt Glue Coating Machine for Hologram Hot Stamping
#11. Hologram Sticker Automatic Die-cutting Machine download Video of die-cutting machine
#12. Hologram Sticker Automatic Sheeting Machine download Video of sheeting machine
#13. Big Bridge Coating Machine for wide web hologram film, wide web hot stamping foil production
#14. Automatic Hologram Hot Stamping Machine Video of Hot Stamping Machine 1 2
#15. Automatic Sequin Punching Machine (not produced by us, it's from other supplier)
#16. Vacuum Metalizers for Metalized Films and Metalized Paper(not produced by us, it's from other supplier)

Video of running hard embosser V1 V2 Video of running wide web soft embosser V3 V4 Video of running laminator V5 V6

Learn More About Holographic sticker    Sample 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 77 76 77 78 79 80 81 82 83 84 88 86 88 88 89 90
